TLAM

Tactical Laser Aiming Module

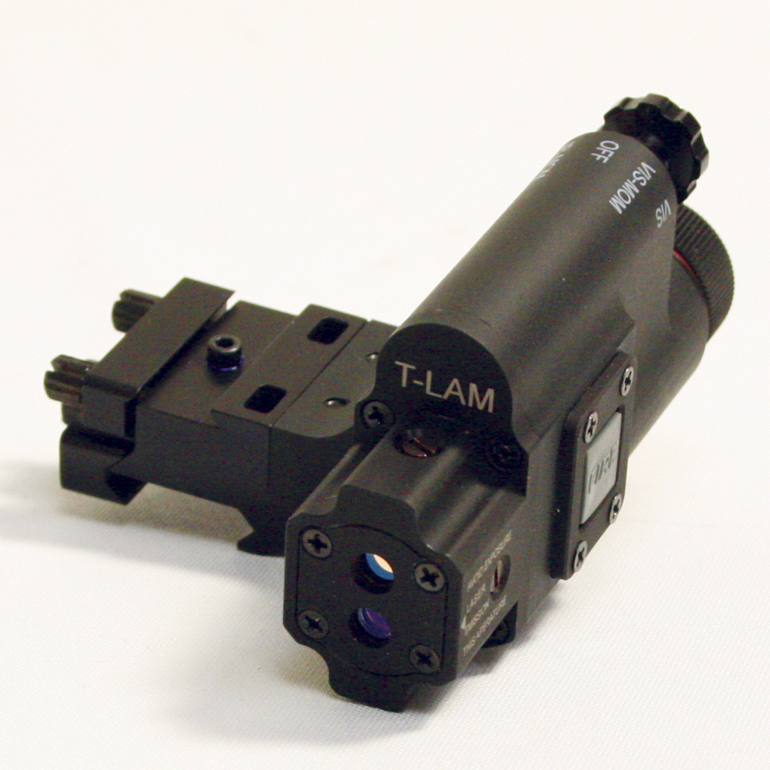

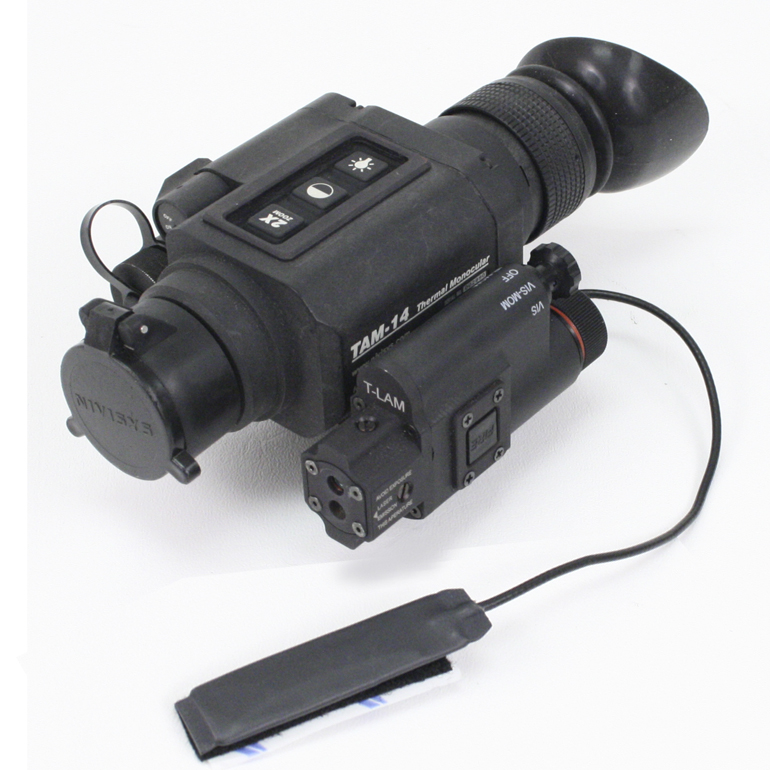

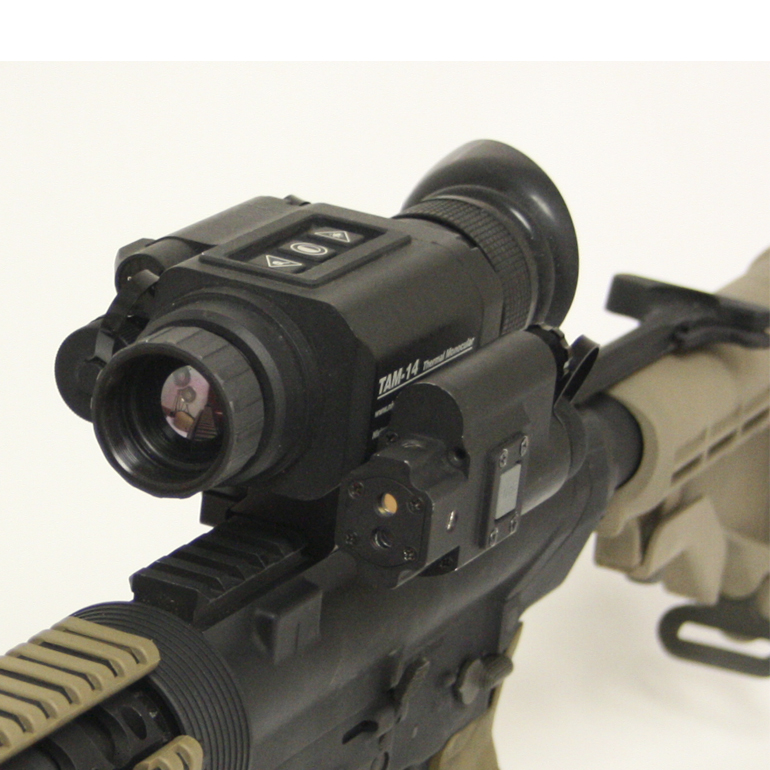

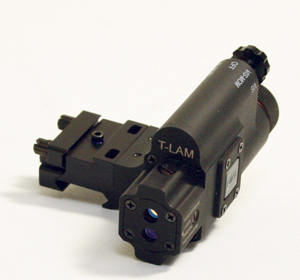

The TLAM Tactical Laser Aiming Module System is another first from Nivisys Industries, bringing you a Dual Beam Laser in a small and lightweight package. The unit easily clamps onto the TAM-14 Thermal Monocular, MUM-14 Night Vision Monocular and even the NVBS-15 Night Vision Binocular. Adding the TLAM to any of these systems immediately gives the operator the ability to mark or hand-off targets efficiently and effectively.

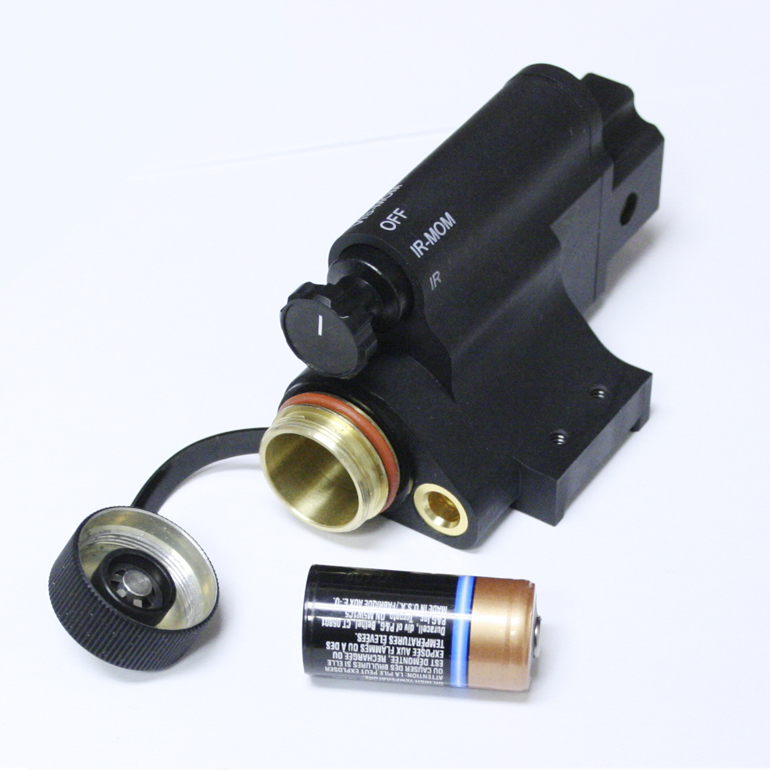

The system uses a 5mw 635nm class lila visible aiming laser for daytime operators giving the user 30-50 meters of range and up to 450 meters in low light conditions. In night operations the system uses a 835nm .6mw class Illb infrared aiming laser that will give the user 800-1000 meters range when viewed through a night vision device. A single 3 volt lithium 123A type battery is used to provide a minimum of 24 continuous hours of use.

  • Co-Aligned Lasers
  • .6mw IR Laser
  • 5mw Visible Laser
  • Single Battery Use
  • Waterproof to 10m
  • Boresight Adjustable
  • Select between IRlVisible
  • Mounts to Thermal Unit
  • Integral Activation Button
