MilSight T90 TaNS (International Orders Only)

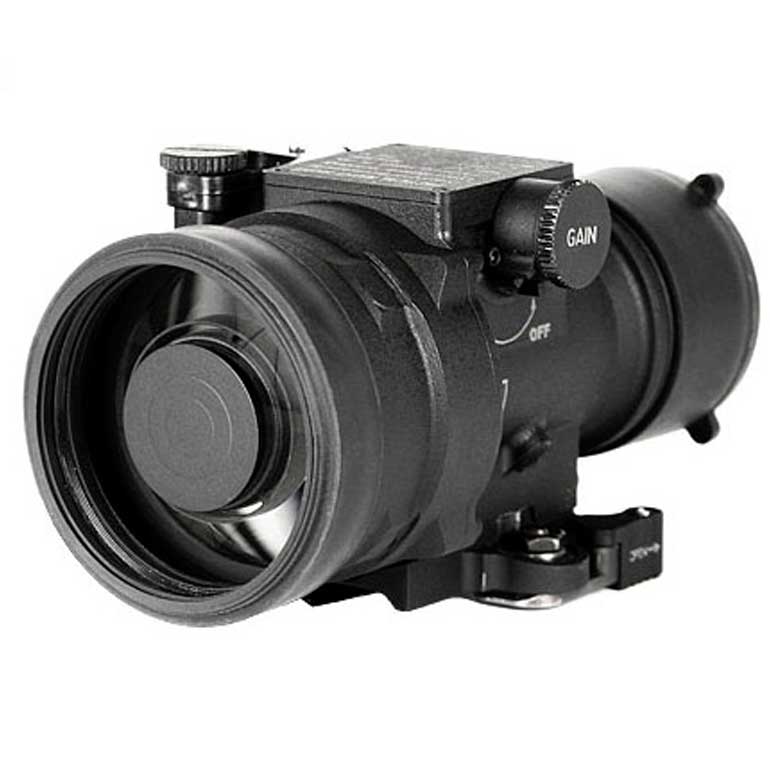

Night Vision Clip-on Sight by FLIR
The TaNS is Designed to mount on any MIL-STD-1913 rail interface forward of an existing scope, adding blended thermal and night vision capabilities to daytime target acquisition platforms. It offers mission flexibility as a high-resolution night vision weapon sight, mounted on a spotting scope for long range reconnaissance, hand-held as an observation device, or used in other night-time operations requiring night vision capabilities. The TaNS proves effective on all weapons from carbines to .50 caliber bolt action rifles, including the M4, M16, HK416, and the AK47. It includes FLIR’s proprietary Shock Mitigation System™ (SMS™), allowing the unit to be used on weapons up to and including .50 caliber bolt-action rifles. The Clip-on sight is highly portable design reduces operator fatigue. Its large, rugged controls make it easy for basic image adjustment and there are no complicated menus to navigate. The unit runs on common AA batteries.
- Compatible with Standard Sight
- Multi-use design
- Optimized for close combat
- assault rifles
- Built-in image intensifier
- protection for added longevity
- Small and lightweight
- Simple operation
- No special batteries required
- It’s all FLIR inside
SYSTEM CHARACTERSTICS
Magnification
Unity
Optimum Dayscope Magnification
1x to 8x
Focus Range
3 m to Infinity
Field of View
14h°
Image Intensifier Gain
1,000 – 75,000
BORESIGHT CHARACTERISTICS (REFERENCES 12 & IR CHANNELS)
Accuracy
Factory Aligned to ½ MOA or Better
Adjustments
None
Repeatability
Within ½ MOA
PHYSICAL CHARACTERISTICS
Shock Mitigation System™ (SMS™)
Operating Temperature
-30° to +60° C
Submersion
66 ft. for 2 hours
Interface (to MIL-STD 1913)
Single Adjustable Locking Lever Mount
POWER
Power requirements
AA or CR123
DIMENSIONS, WEIGHT & MOUNTING
Interface (to MIL-STD 1913)
Single Locking Lever
Length
5.6”
Weight (w/o batteries)
24 oz
Max Height Above Rail
3.05”
INTERFACES
Command and Control
On/Off/Gain, Focus
PERFORMANCE
Resolution (Minimum)
2.5 cy/mr
Resolution (Typical)
2.9 cy/mr
FACIAL ID RNAGES
Starlight, Low Contrast
65 m
Starlight, Optimum Contrast
90 m
¼ Moonlight, Low Contrast
90 m
¼ Moonlight, Optimum Contrast
105 m
MAN DETECTION RANGES
Starlight, Low Contrast
640 m
Starlight, Optimum Contrast
880 m
¼ Moonlight, Low Contrast
880 m
¼ Moonlight, Optimum Contrast
1070 m
OPTICAL CHARACTERISTICS
Objective Lens Focal Length
50 mm
Objective Lens f/Number
f/0.9
Output Optic Exit Pupil Diameter
33 mm
